無塵自動循環回收噴砂機系列

◆企業產品特別 Product features（請往上面挑選有大量量應用案例圖片僅供參考選取）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”裝配車間氣粉層健康標準。砂料、粉層主動回收公司、剝離、重復便用，工做直播干靜無粉層影響。主設備生態環保方案，有很大程度的促進了人員的勞動改造標準和上班區域裝有噴吹閥設備，可會電腦主動祛除空壓三濾積塵。預置分水過濾水器。可對減小暖空氣實施再次油和水分離出來。會電腦主動放料，將吸砂頭放進去砂料中，再啟動真空環境泵設備將會電腦主動放料。PLC可源程序操作（選裝），料位報警功能鍵(選購)。包括調壓轉鈕、除塵器原理按紐。安全穩定的氣控安裝與爐料閥。運行圓的直徑20-70米，表明除理等級分類達Sa2.5-3級。標準顯卡配置應急防潮、防水電壓排插電源插座，便利實際操作方法。標準顯卡配置保持電壓南航排插電源插座便利實際操作方法。現代感顏值的耐磨耐磨防塵保持的面版與電氣操控箱。保護與檢查獨特便利。車式機柜結構的，防潮耐磨耐磨防塵，走動便利。機柜門邊框選用熱鍵門瑣連接方式，拆解便利。把手電開關保持（電氣操控DC24V）。一機三用，極具開啟式、產業吸砂器、節能減排型三類主設備的效果。噴砂電腦主機主要采用特色調節電路開關，任務公稱壓力在0.2Kpa-0.8Kpa區間之內內同時調接，可實現各不相同產品工件的噴砂工藝設計標準要求。用到區間之內：除銹防銹、除乳膠漆、對接焊縫處理（涵蓋304不繡鋼焊口簡述較近的去黑、去焊渣外理）去振紋、飛邊、硫化皮、304不繡鋼，型材外壁的優雅型亞光外理（耐污性好些、可覆蓋割破）、去混疑土、石雕外壁污圬等外理。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆核心技術應用性能指標 Main technical parameters

POS機材質 Model	STR-B型無塵自動循環回收式噴砂機
工作上電源模塊 Work power	380V 50HZ
水汽氣壓 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
減速機耗油率 Motor power	4kw
工作中利用率 Work efficiency	6-10m2
任務圓的半徑 Work radius	10m 可會根據需要拉長，具體實施在線咨詢客戶
工作中主要形式 Work form	一鍵嵌套循環回收并Automatic cycle recovery
進行清理層級 Clean level	Sa2-3
粗糟度 Roughness	60μm的樣子
質量 Weight	260kg
樣貌規格尺寸 Shape dimension	1380×830×1700mm
砂料品種 Sand material specifications	20-100#左右（1.0mm-0.04mm）

◆選用位置 Applicable scope

1.綠色規范要求高且無所有的凈化設施的施工地點；

2.正確處理中等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

在使用領域：防銹、除表面油漆焊接縫隙進行處理去振紋、飛邊、氧化物皮不銹鋼、型材表明的典雅型亞光操作（耐污性比較、可遮掩刮花）去瀝青c30混凝土土、石雕外表面污圬等操作。

（基本資源可參考使用A型或轉達我集團公司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 服務特殊性 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已擠壓，的就算省事室內裝修施工轉移省事，大很好的降底了勞動改造效果，與此同時操作工作效率在中國大陸差不多型商品靈活；能夠得到了大多大家的完全一致喜愛，并早就能夠得到了了廣泛的的推薦和食用！（具體情況檔案資料可參考選取A型或咨詢我四虎在线免费视频-4虎最新网址-四虎精品视频-四虎久久久）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

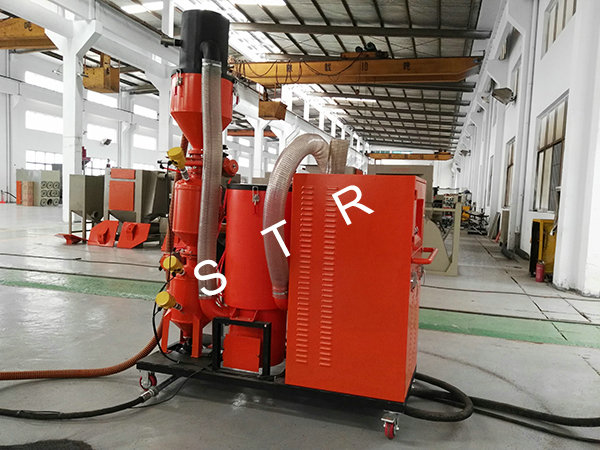

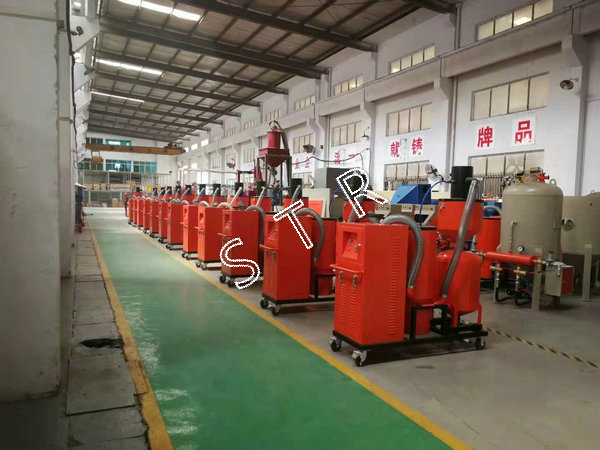

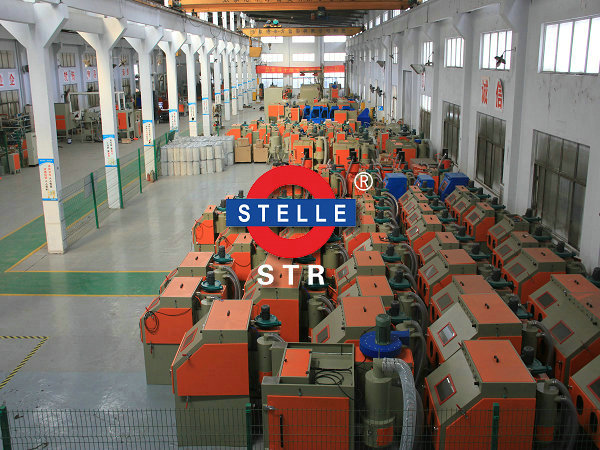

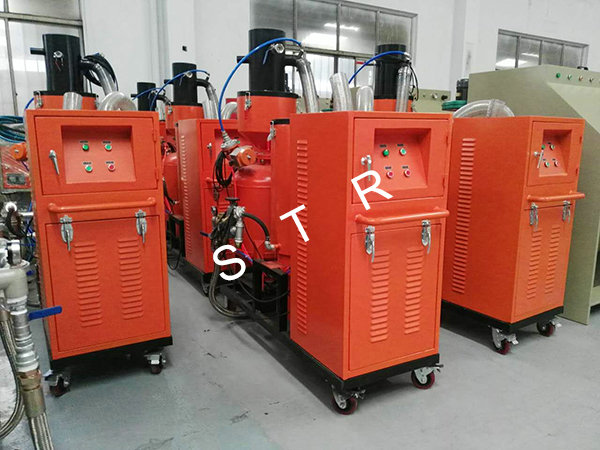

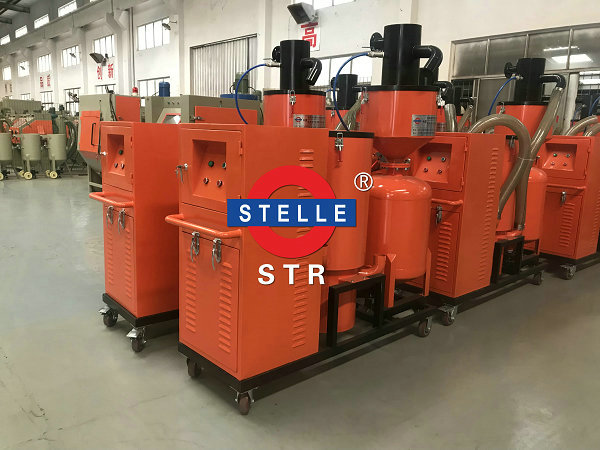

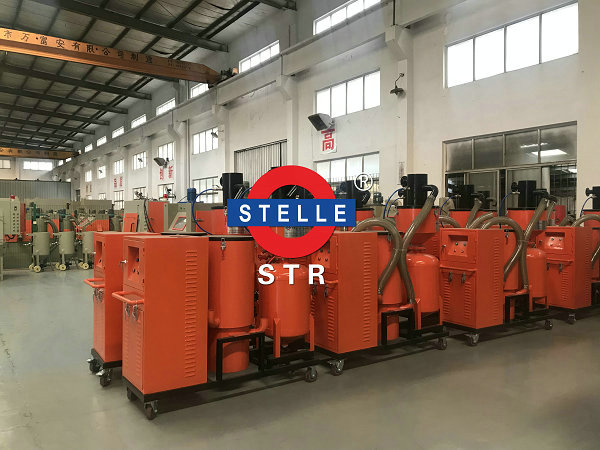

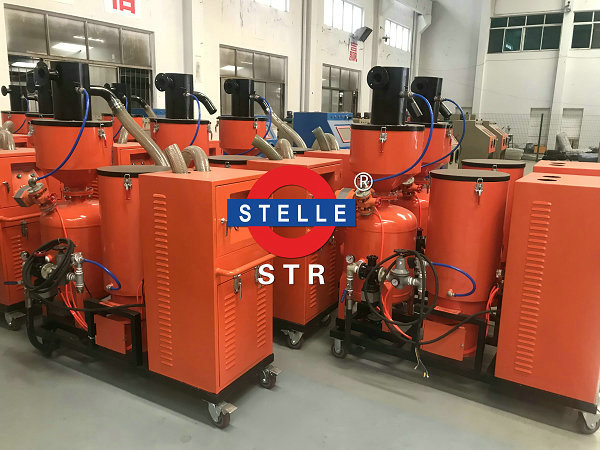

部份無塵自動循環環保型噴砂機案例:
