◆品牌顯著特點 Product features
1. 定制有意思(si),樣貌美觀性,的(de)環保的(de)好(hao)用(yong);
2. 隨意(yi)調(diao)節式颶風轉移法(fa)器,能(neng)將快(kuai)速可用耐磨(mo)材料(liao)磨(mo)具與小煙塵轉移法(fa),好的耐磨(mo)材料(liao)磨(mo)具持續運用;
3. 主要(yao)的零(ling)主件采取質(zhi)量上乘(cheng)原裝進口器(qi)件,選用保修(xiu)期長;
4. 工藝軸(zhou)類零件外面飽滿(man);
5. 多工序的設計;運作員可同樣運作噴砂。可根據企業客戶體驗量,可以選擇擇手工或手動 ;可按潛在客戶的要求生產廠家!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆支持面積 Applicable scope
裝飾板材,手機殼體(ti),車載音響顯示(shi)屏(ping),雞蛋三明治烤盤等立(li)體(ti)及方體(ti)工件產品(pin)的(de)噴(pen)砂激(ji)光(guang)加(jia)工。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆基本水平指標 Main technical parameters
|
設備款式 Model |

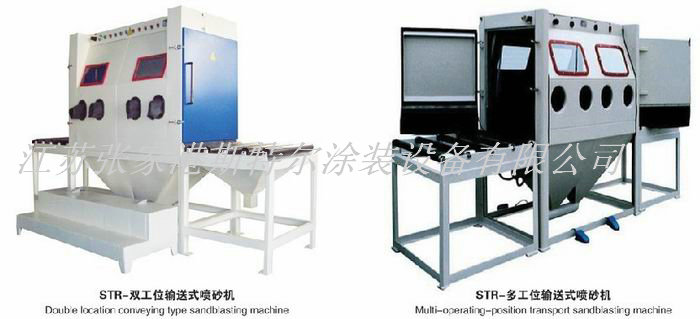

STR-多工位輸送式噴砂機 |
|
服務器規格(ge) Complete machine size(mm) |
3000×1000×1700 |
|
作業前景(jing) Work space(mm) |
2000×1000×800 |
|
外推(tui)送長寬(kuan)高 Conveying the size(mm) |
500×1000×1000(2件(jian)) |
|
排塵箱規格尺寸 Dedust box sizes(mm) |
600×600×1800 |
|
拆分器無刷電機 Separator motor |
220V 50HZ 550W |
|
隔(ge)離器風口(kou)尺寸(cun) Separator air volume |
8.5m3/min |
|
壓縮成暖空氣源 Compressed air source |
2-8bar(kg/cm2) |
|
噴槍 Spray gun |
2把 |
|
照明 Floodlight |
兩盞30W防爆型燈 |
|
機械設(she)備單重 Machine weight |
550kg |
