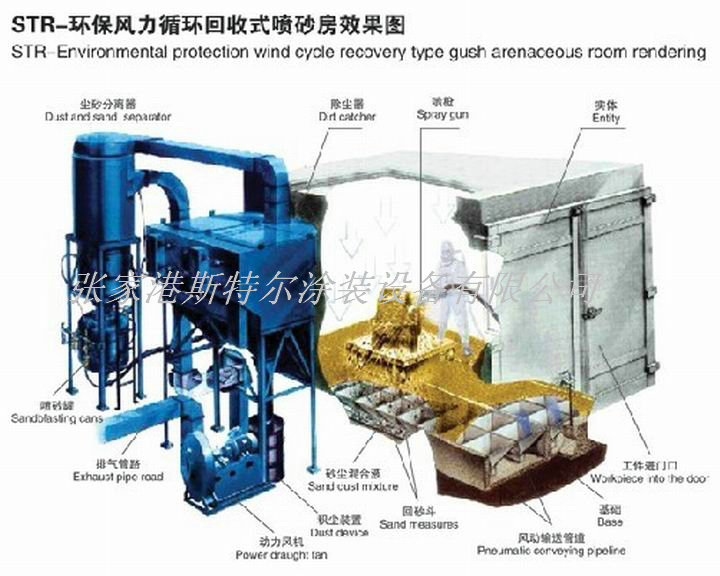

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的成分系統的

Composition of the sandblasting (shot) room system

1、事業室  Studio

2、噴砂操作系統  Sandblasting  system

3、耐磨材料收購機系統  Abrasive recycle system

4、濾塵系統化  Dust removal system

5、軸類零件輸送帶模式  Workpiece conveying system

6、控住自動控制系統  Control system

7、照明燈具設備  Lighting system

 ◆可用于范圍內 Applicable scope

較(jiao)大型鑄件(jian)鍛件(jian)、焊(han)接工(gong)(gong)藝(yi)鋼的結構(gou)、變電器(qi)油槽、水(shui)利工(gong)(gong)程(cheng)機(ji)戒、軌道車(che)機(ji)動車(che)、水(shui)器(qi)生產制(zhi)造、化(hua)工(gong)(gong)新材料機(ji)戒、海船修(xiu)造等噴(pen)砂防銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆的(de)產品優勢 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

都具有以(yi)上顯著(zhu)優點(dian)：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、爐料利用率高，有助(zhu)于(yu)清(qing)換爐料；

3、包括(kuo)電力電氣(qi)元件均通過進口的貨品，有著(zhu)能平穩，應急可以信賴，食(shi)用(yong)時間長，服務器維(wei)護很簡單；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、濾油機按(an)照雙極凈化(hua)，第一點級按(an)照颶風轉(zhuan)移器，然后(hou)級用濾清器式凈化(hua)軟件系統，其(qi)總凈化(hua)轉(zhuan)化(hua)率可以(yi)達到99.99%之內；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各模(mo)式電機把握(wo)(wo)軟件系(xi)統性用到互鎖把握(wo)(wo)，當(dang)在(zai)當(dang)中一模(mo)式發現出現問(wen)題(ti)時，重要性模(mo)式均終止業務業務，噴槍終止業務壓噴射；

8、房體(ti)所采(cai)用古建(jian)筑(zhu)飾(shi)品開發，外(wai)貌(mao)簡單、形象、標準(zhun)化(hua)，隔音降噪特效好(hao)，且裝有便利。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
