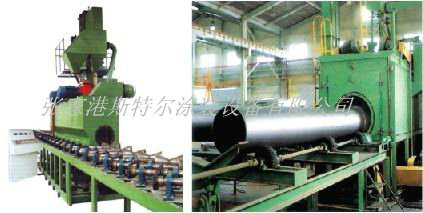

不銹鋼(gang)鋼(gang)管內部因素和壁拋(pao)噴丸(wan)清洗(xi)機
◆車輛亮點 Product features
焊管(guan)表面能拋丸深度清理(li)(li)機(ji)應用(yong)以大、中、家庭(ting)型(xing)焊管(guan)、瓶的(de)表面能整理(li)(li)和武器(qi)鍛造(zao)、鋼件(jian)(jian)產(chan)品(pin)手動(dong)翻轉、手動(dong)行(xing)動(dong)，鋼件(jian)(jian)產(chan)品(pin)的(de)運行(xing)業務快慢可利用(yong)鋼件(jian)(jian)產(chan)品(pin)的(de)標準要求開始(shi)適時調節，可設計構思成(cheng)單管(guan)、雙管(guan)、3管(guan)、4管(guan)、遺傳變異后(hou)可請理(li)(li)大一些的(de)管(guan)材、儲罐，化工(gong)機(ji)械倉儲運輸罐道軌該車輛等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆首要技木指標 Main technical parameters
|
清理工作(zuo)無縫管厚度 Clean steel pipe size |
Φ300×5000mm |
拋丸器個數 The number of shot peening machie |
2臺 |
|
輥道行駛轉速 Roller speed |
1-5m/min |
拋(pao)丸器工作功率(lv) Shot peening machie power |
11kw×2 |
|
彈丸內徑 Projectile diameter |
Φ0.8-Φ1.2mm |
拋丸(wan)量 The number of shot peening |
250kg/min×2 |
|
首先彈丸裝到量 The first projectile into amount |
800kg |
風扇葉片內直徑 Impellerdiameter |
Φ250mm |
|
進(出)料輥道大小 Length of material into(out) the roller |
5000mm |
風輪時(shi)速 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射極限速度(du) Aerosol propellant speed |
60-70m/s |
|
負載凈重 Load weight |
30kg/m |
的垂直提升機(ji)電機(ji)功率 Hoist machine power |
3kw |
|
擺線(xian)加速(su)運動機(ji)電機(ji)功率 Cycloidal reducer power |
2.2kw |
提高了量(liang) Ascension of |
30/h |
|
進(jin)行過濾布袋條數 The number of filter bag |
36條 |
提取量(liang) Separation of |
30t/h |
|
活性炭過濾布袋型號規格 Specification of filter bag |
Φ120×5000mm |
可以旋轉(zhuan)工作電壓Longitudinal spiral power |
3kw |
|
外(wai)理風(feng)口尺寸 Processing air volume |
9800m3/h |
推送量 Throughput |
30t/h |
|
除(chu)塵(chen)器制冷機(ji)耗油(you)率 Dust electromotor power |
5.5kw |
總效(xiao)率(lv) Total power |
37kw左右兩邊 |
|
振打(da)電機馬(ma)達工(gong)率 Vibration motor power |
0.75kw |
系統(tong)外觀長寬(kuan)高 Shape dimension |
15000×4600×5000mm |
