管道外壁自動噴砂機系列

管道外壁自動噴砂機

實用的范圍 Applicable scope

管類軸類,如:無縫鋼管、槽鋼、拉(la)杠、絲桿(gan)、大(da)中型圓(yuan)形、圓(yuan)罐類、圓(yuan)形型鋼件;選取(qu)雙(shuang)槍(可按需要多槍)及颶風式排塵(chen)器(qi)和光電科技(ji)感受(shou)到作(zuo)用,從而提高了(le)工作(zuo)率及大(da)很好縮減了(le)維護(hu)保養率。 (此形號需網上預(yu)訂)

The kind of pipe  workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)



具體技藝指標 Main technical parameters



機械類型 Model

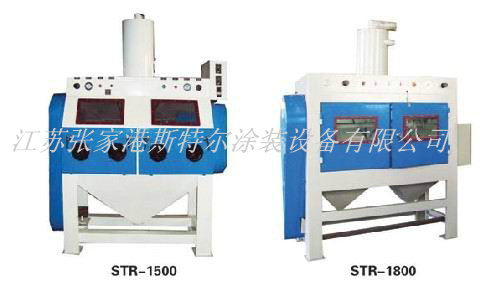

STR-1500管道外壁自動噴砂機
STR-1800輥傳動雙槍自動噴砂機
事業艙圖片尺寸 Working class size(mm)
1000×900×900
1800×900×1000
機床面積 Complete machine size(mm)
1200×900×2900
1900×900×2900
進行壓縮水汽源 Compressed air source
2-8bar(kg/cm2)
2-8bar(kg/cm2)
電源線 Power
220v  50Hz
220v  50Hz
交流變頻電機的調速器器 Governor
250W×2
250W×2
分割器減速機 Separator motor
380v  50Hz  4kw
220v  50Hz  1.1kw
分離法器排風量 Air separator
35m3/min
35m3/min
機械設備凈重 Machine weight
900kg
900kg

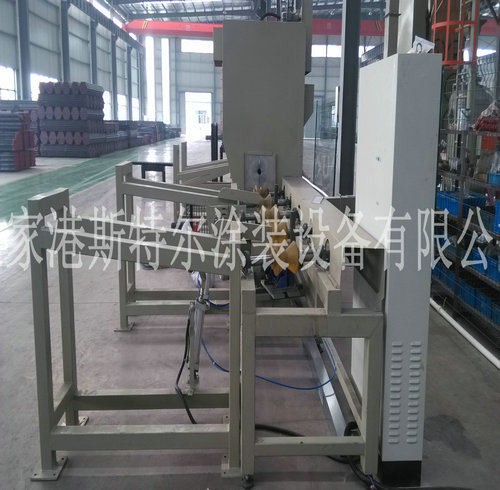

部份管道外壁自動噴砂機使用現場案例(具體視頻中心內瀏覽)
