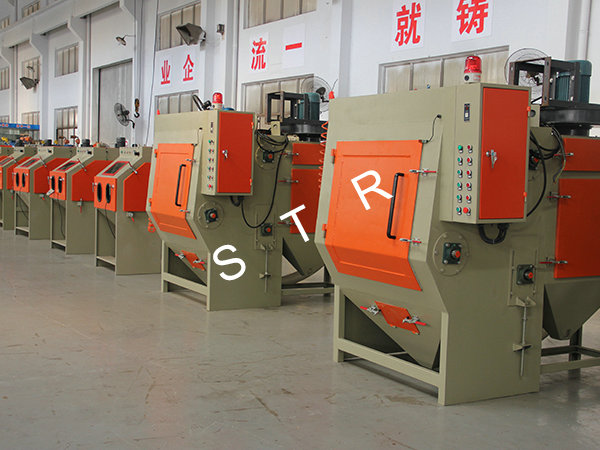

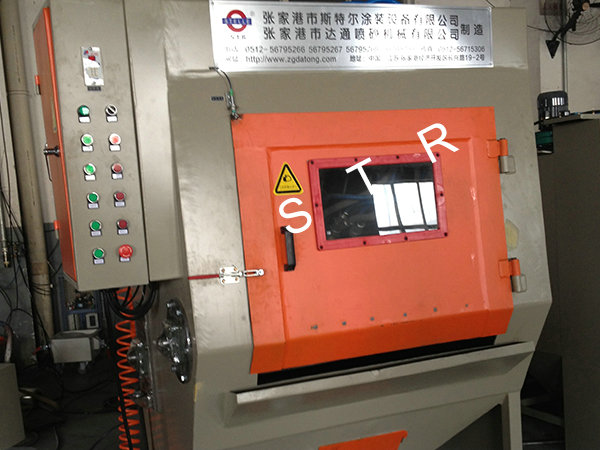

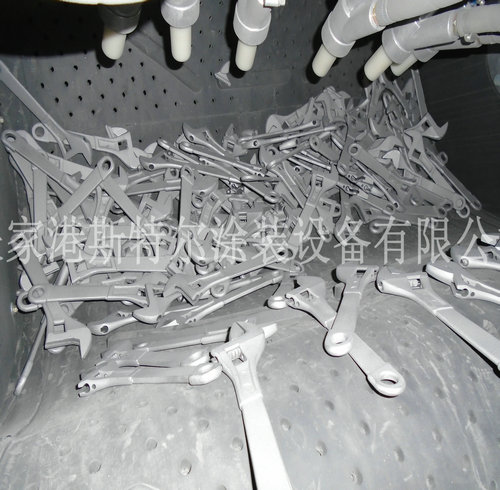

STR-履帶式自動噴砂機(請向下閱讀有個量例照片兒供對比)
◆物料性能 Product features
1、符合全自動全自動噴砂,點動確定用途。
2、產品貨物搬運方便快捷,進行操作簡便,節約了人事資源性。
3、滾筒式寸尺及花灑頭需求量可視消費者特殊要求制定。
4、適合于的細小鋼件的快速制造,如隱形拉鏈頭、螺絲帽等粗加工。
1.It has regular automatic spray sand, the point start positioning function.
2.workpiece loading and unloading convenient, simple operation, and save the human resources.
3.roller dimensions and the number of guns can set according to customer requirement.
4.It is suitable for small batch production of workpiece, such as zipper head and screws and processing.
◆核心技巧運作 Main technical parameters
|
設備型號 Model |
STR-履帶式自動噴砂機 |
|
主機設備外型尺碼 Air end shape dimensions |
L1140×W1000×H1860mm |
|
滾筒長寬比 Roller size |
500×600mm |
|
每一次的進行排泥量 Every processing capacity |
30-50kg |
|
滾筒機調速電機 Roller motor |
50HZ ac 380V 3-11KW |
|
滾軸鉆速 Roller speed |
10RPM |
|
提取器調速電機Separator moto |
380V 50HZ 3KW |
|
氣源請求 Air source requirement |
pressure 2-7 kg/cm2 |
|
耗氣量 Gas consumption |
每噴咀1m3/min(選擇噴咀人數而定) |
